WHATEVER YOUR PAYLOAD
READY FOR ANYTHING, EX Series CARRIES MORE PER LOAD FOR FEWER TRIPS
Classified according to gross vehicle weight, the EX Series range spans five different models from the 5.5-ton EX5 to the top-of-the-line EX9 which features a 4,850mm-long deck and 8.2-ton GVW rating. The reinforced rear axle has a 6,600kg maximum weight ratings so your cargo rides safely without worry. Powertrains are tailored to match respective cargo hauling capacities
The best in Comfort and Cargo Efficiency

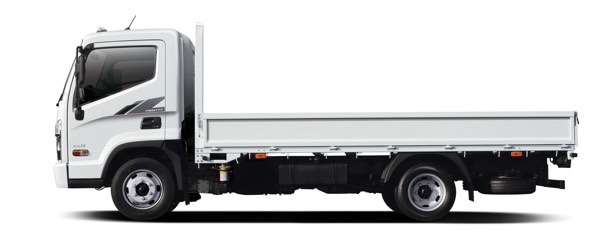

Super Cab

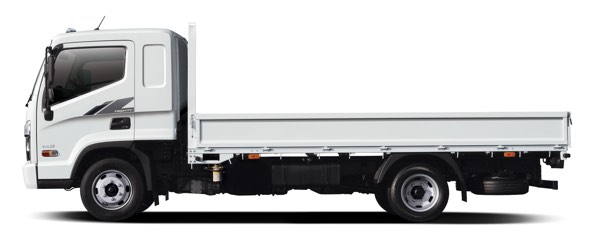

Standard Cab
EX5
EX6
EX8
4,400 mm

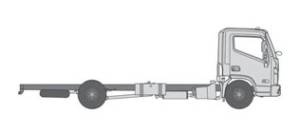

Extra Long Wheel Base
Extra long wheelbase(for Super Cab) EX Series at its mightiest, the Extra Long provides maximum load space.
4,050 mm
Long Wheel Base
Optimized Super Cab Wheelbase With room for your crew and a longer 4,050mm wheelbase, the Super Cab offers the best of both worlds. Standard Cab wheelbase measures 3,850mm
Performance & Safety
The EX Series helps minimize risk and dangers with its various safety features, while the advanced Vehicle Dynamic Control provides the ultimate braking performance.
Engine
EFFICIENT, POWERFUL AND RELIABLE
Euro 1 ~ 6
Emission
2,497 ~ 3,933
Displacement(CC)
120 ~ 170
Max Power(ps)
30 ~ 62
Max Torque(kgm)
Maintenance
MORE MILES WITH LESS LITERS

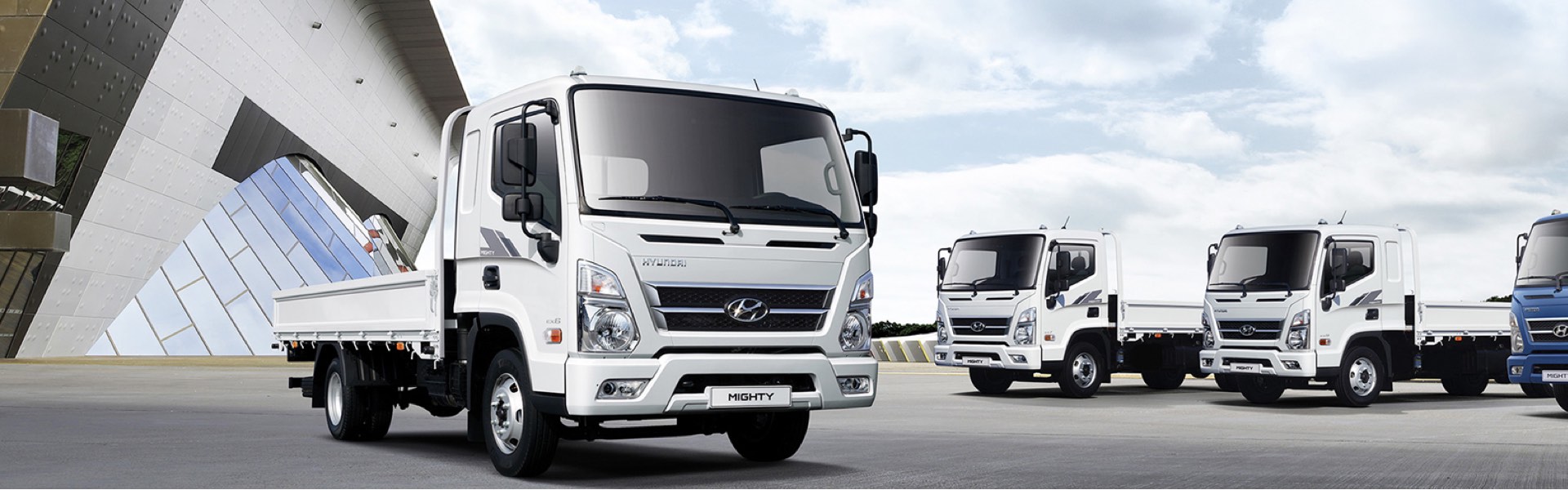

Efficient
EX Series is D4 family of CRDi engines. The straight-four powerplant is mated to a 5-speed manual transmission (6-speed in the case of the 170ps D4GA17) to drive the rear wheels.

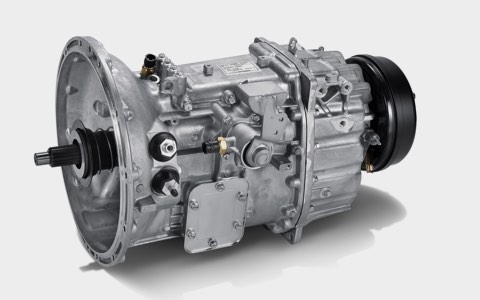

T60S6
6-speed manual transmission

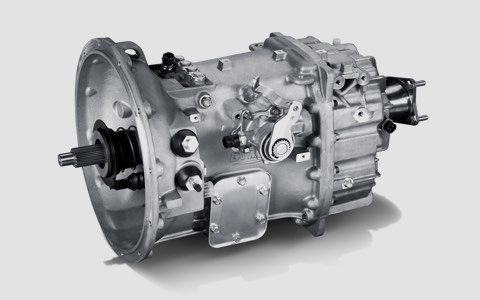

T60S5
5-speed manual transmission.

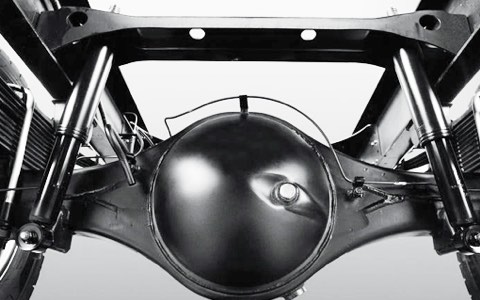

Improved Rear Suspension
For easier maintenance of more parts compared to the previously applied maintenance panel opening

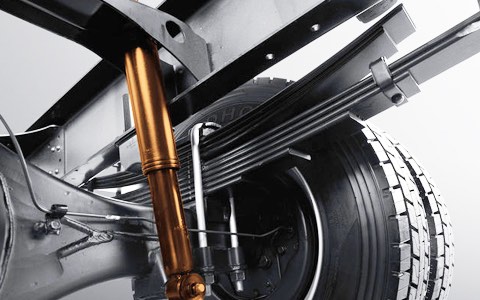

Anti-Vibration Dampers
Integrated spring and shock absorber, enlarged shock absorber size generate lower vibration and better absorption of up/down pitching. Lateral shock absorber applied lower left & right vibration.

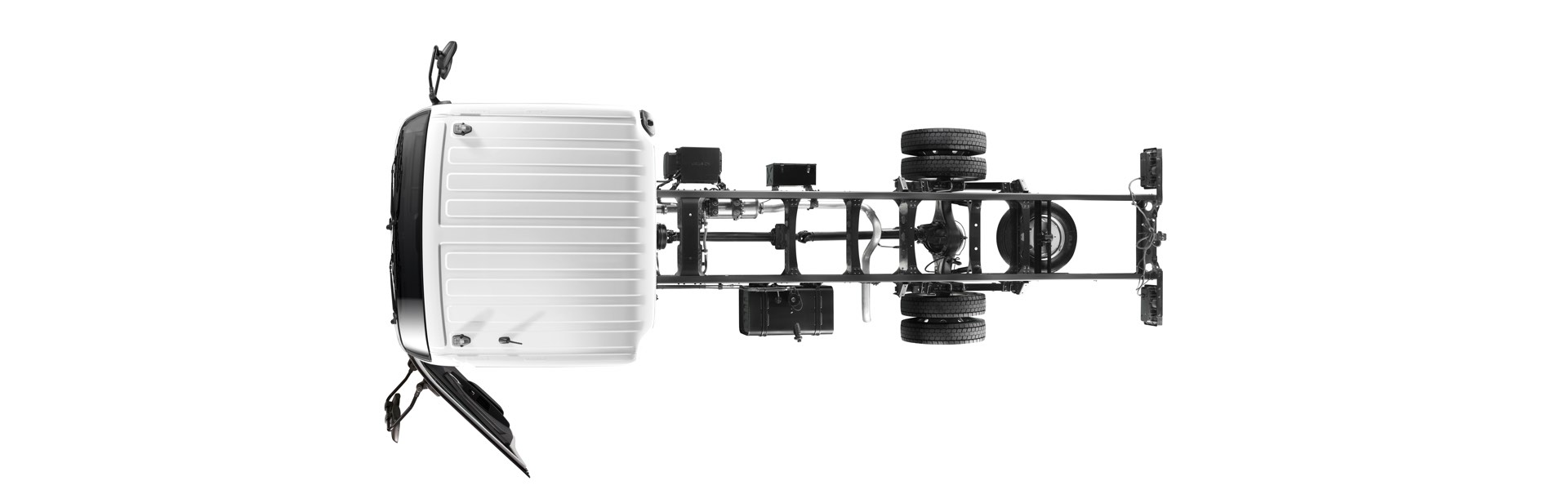

NVH Countermeasures
EX Series is D4 family of CRDi engines. The straight-four powerplant is mated to a 5-speed manual transmission (6-speed in the case of the 170ps D4GA17) to drive the rear wheels.
Zinc-galvanized
To achieve higher standards of strength, rigidity, and improved crashworthiness. For rust-resistance and extended durability, 79% zinc-galvanized steel has been specified for the cabin structure.
Engine moved forward
By moving the engine forward 50 mm, an extra load space has been created. This has also allowed the cab to be mounted lower, achieving a lower center of gravity and reduced vibrations.

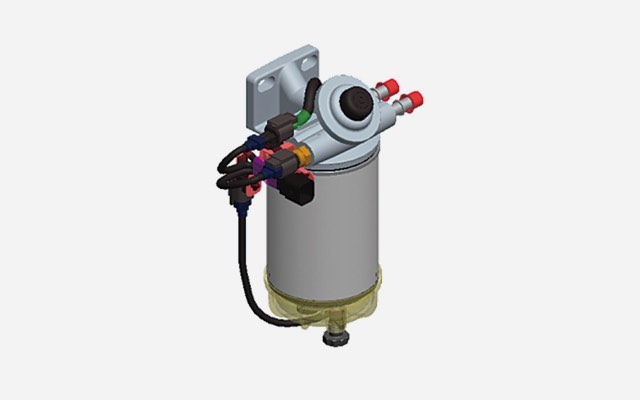

Easy Winter Starting
The fuel system includes pre-heater to prevent icing and promote fast starts in sub-zero temperatures.
Easy to Customize
For easy upper body customization, the ladder frame features a matrix of predrilled 11mm holes spaced 50mm apart.

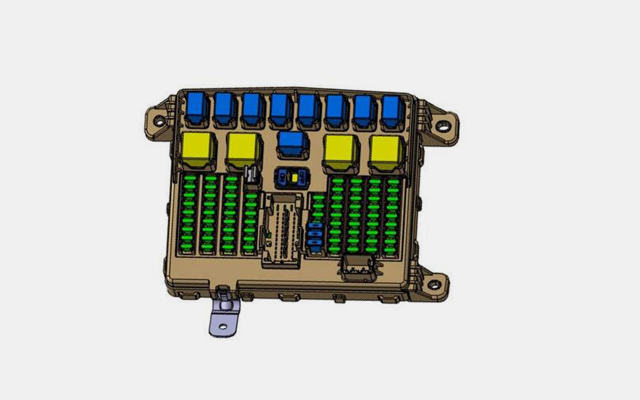

Improved Junction Box
New design allows for quick of burnt out fuses and easy checks replacement to detect current leakage.
Safety

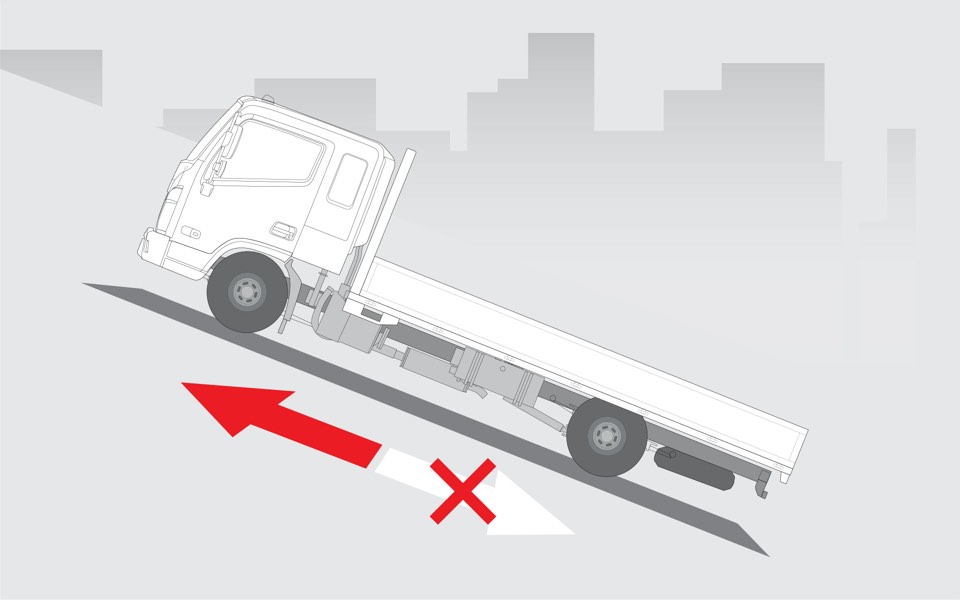

Easy Hill Start (EHS)
EHS prevents accidental ‘roll back’ when releasing the brake to proceed a steep slope

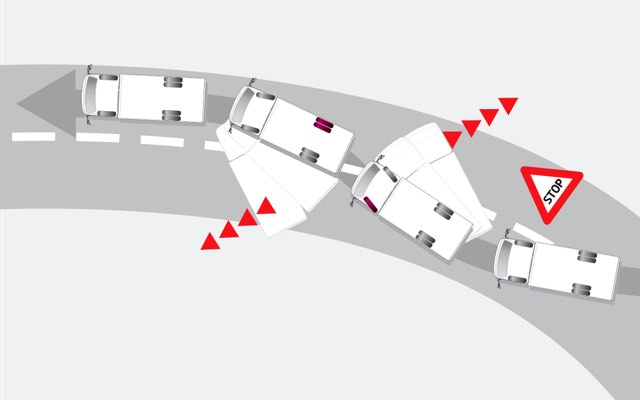

Electronic Stability Control (ESC)
ESC uses selective braking of individual wheels and engine intervention to help maintain directional stability.

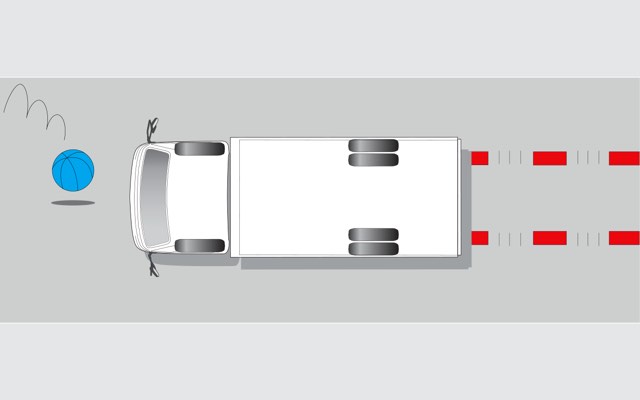

Anti-lock Braking System (ABS)
ABS helps maintain directional stability and decreases stopping distances on slippery pavement.

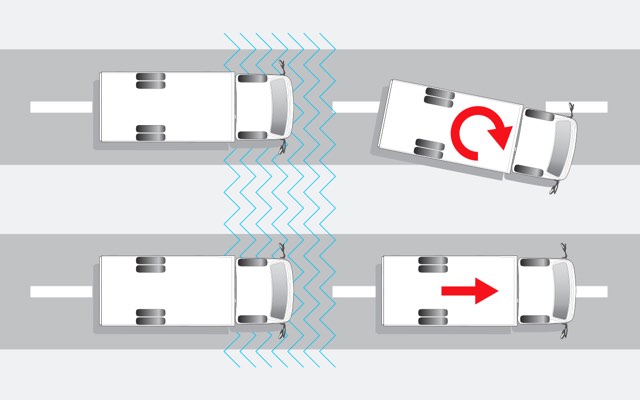

Traction Control System (TCS)
TCS prevents wheel spin and loss of traction and is particularly helpful when accelerating from a stop.
Convenience

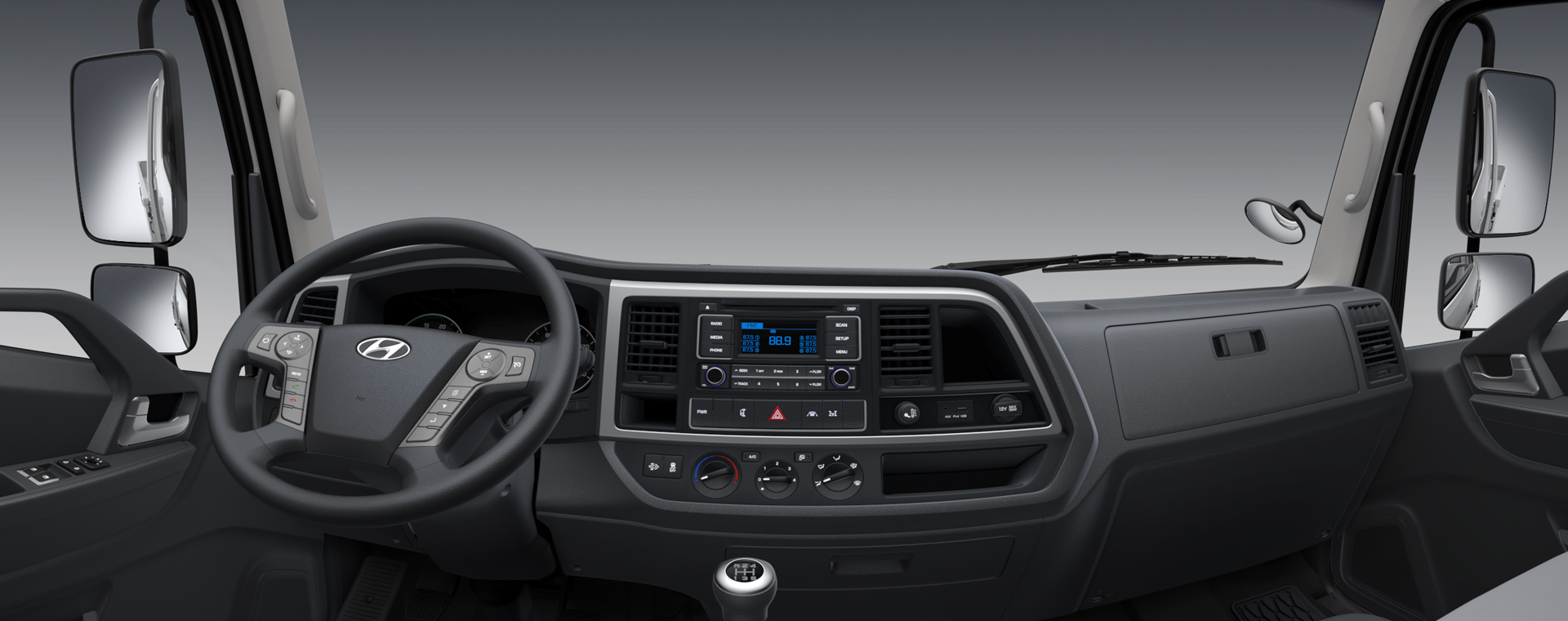

To ensure absolutely effortless operation, careful attention was paid to the smallest details inside the cabin such as its size and spacing.
Style

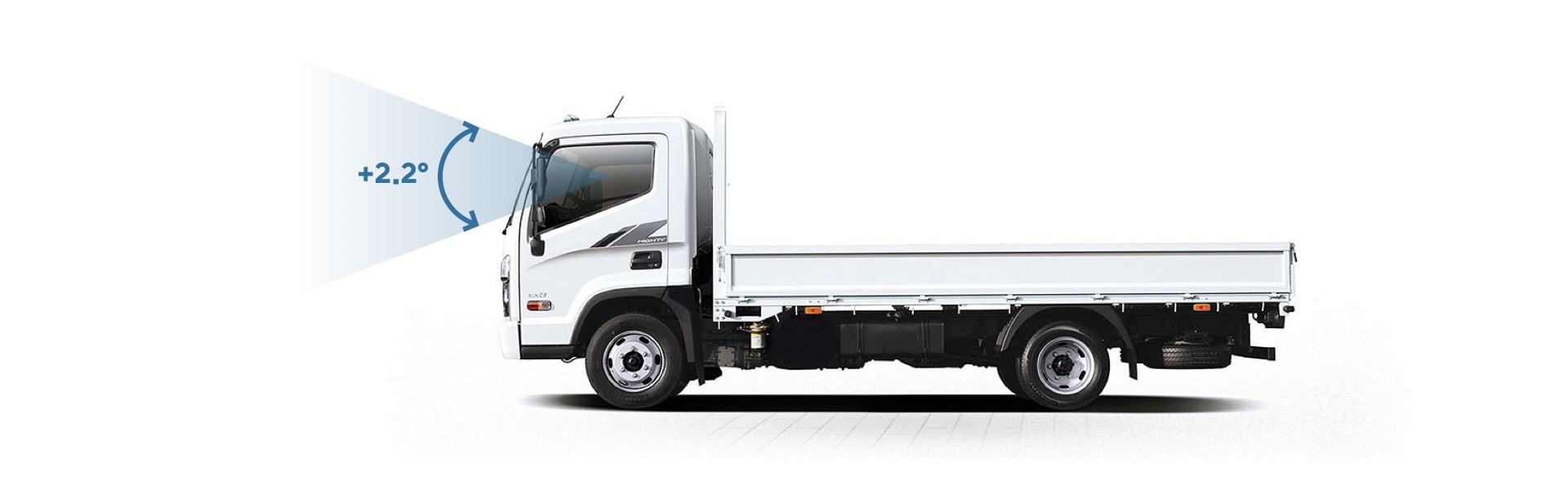

Enhanced Forward Visibility

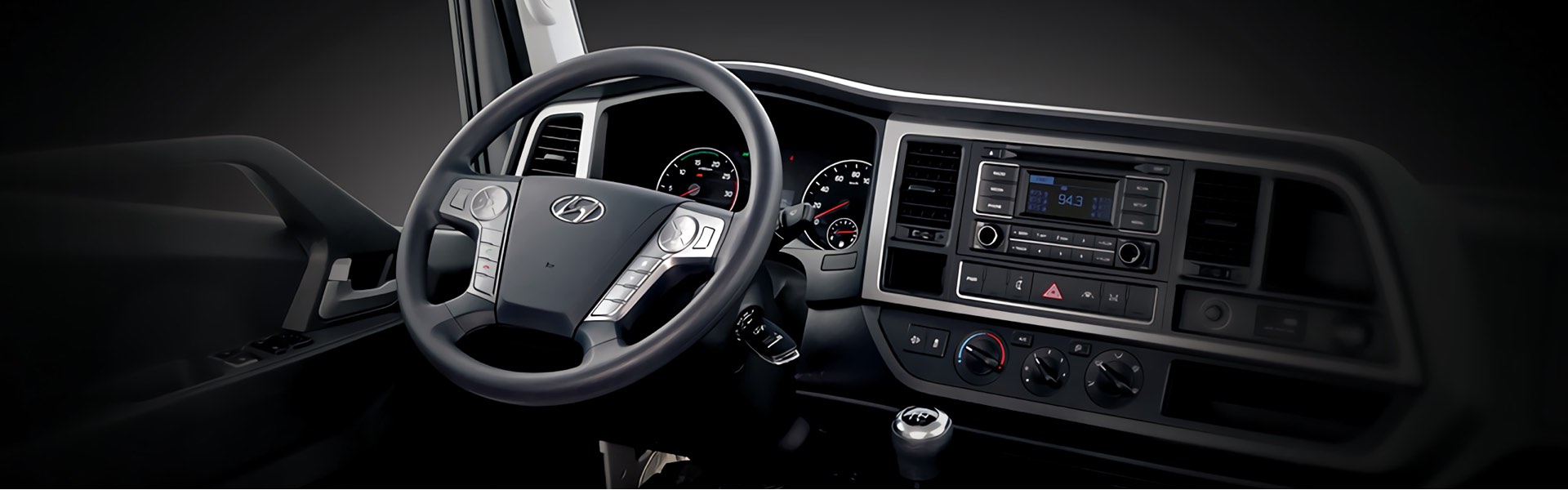

Horizontal Dashboard Layout

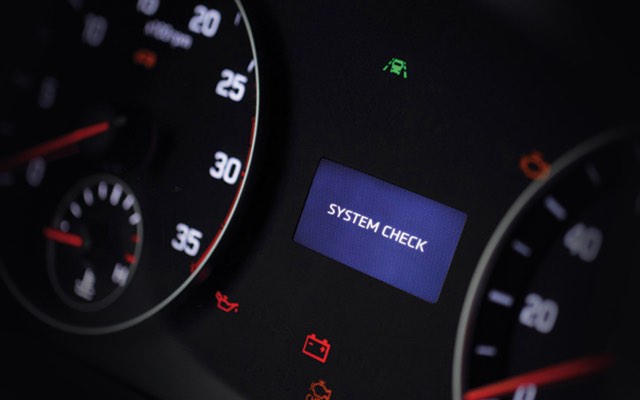

Maintenance Alert System
This advanced monitoring system issues alerts whenever it’s time for an oil change or other important maintenance.

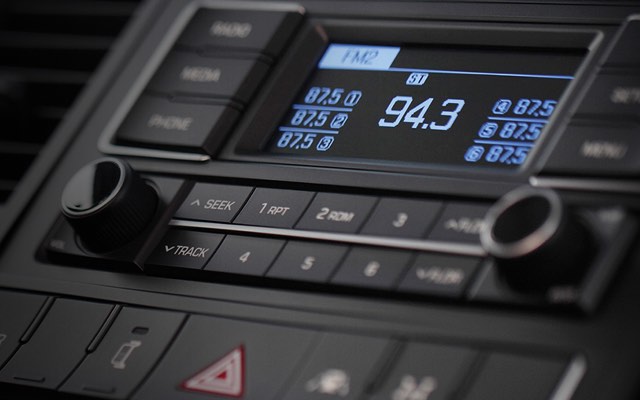

Convenient Audio System
The top-end T800 AM/FM radio offers Bluetooth capability, plays MP3s, CDs and accepts USBs and AUX inputs.

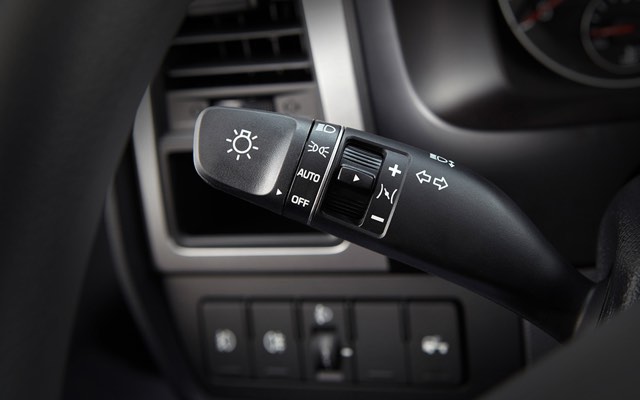

Multi-Function Control Stalks
Light and turn signal control functions are right at your fingertips with these sturdily-built stalks.
Design
BOLD & CONFIDENT DESIGN
360° VR
Exterior
BOLD & CONFIDENT DESIGN

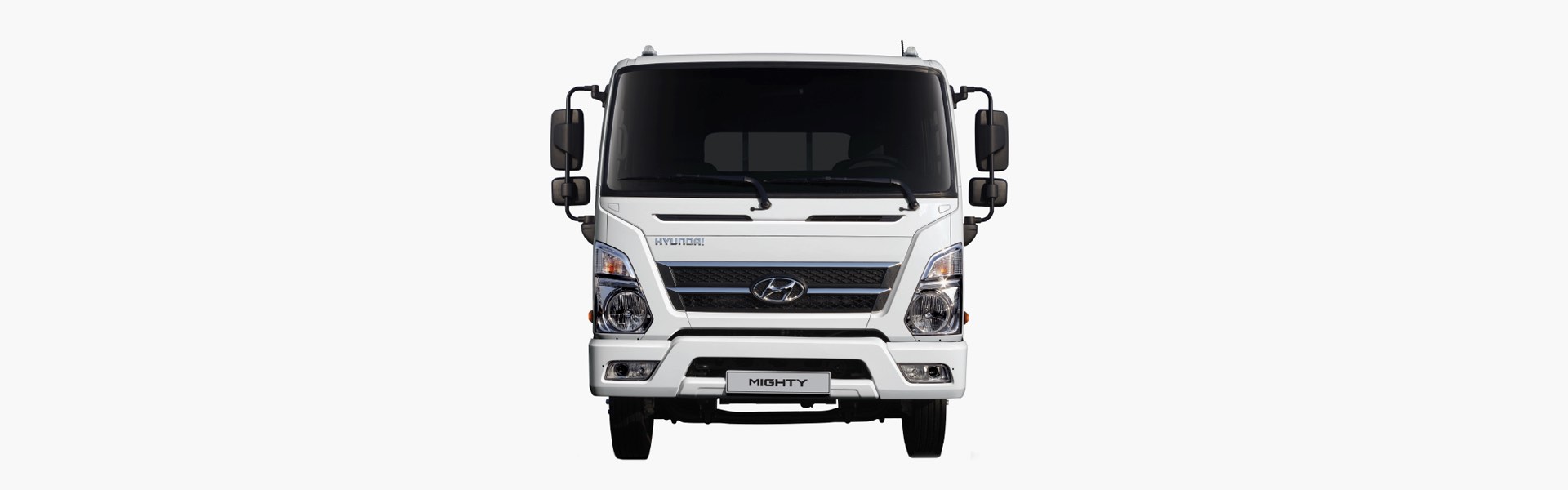

SUPERIOR DESIGN AND FUNCTIONALITY
Taller, Wider Side Glass
taller, wider side window provides the driver with a much better view for safer driving. Cross-Type

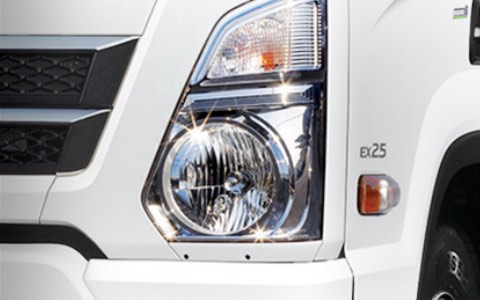

Stylish Headlamps
The two lamp assemblies are stacked vertically creating an impression of strength and authority
Projection Fog Lamps & DRL
Fog lamp assembly includes projection lenses and daytime running lamps for better visibility especially in adverse weather conditions.

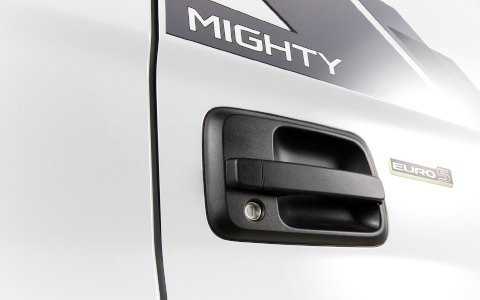

Grip-Type Door Handle
Horizontal handle is large and hefty and provides a secure grip even if wearing heavy gloves
Interior

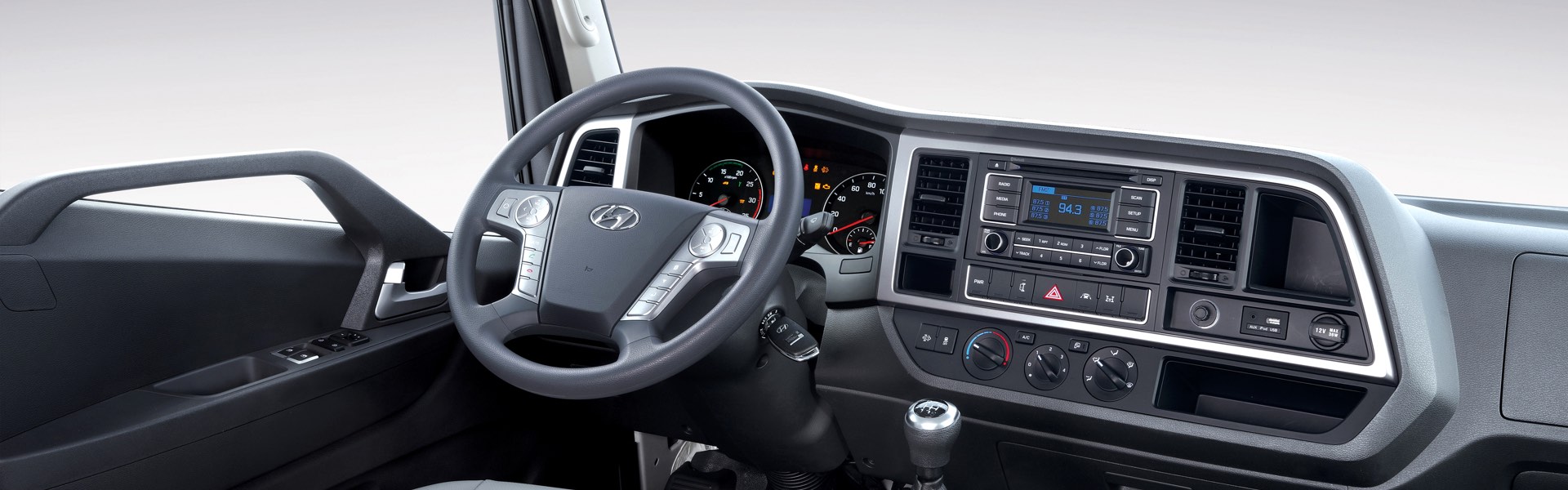

CLASS-LEADING ROOMINESS AND MORE STORAGE AREAS
The EX Series cabin is designed to surpass expectations. Generous interior dimensions allow the driver to stretch out and relax in complete comfort.

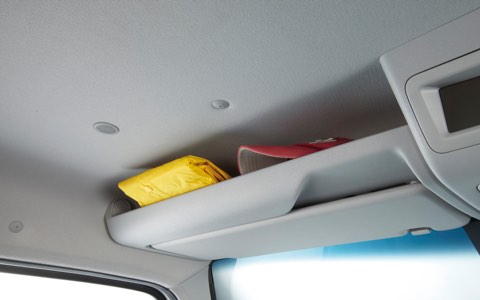

Overhead Console
The volume of this handy overhead space measures at an impressive 21 liters.

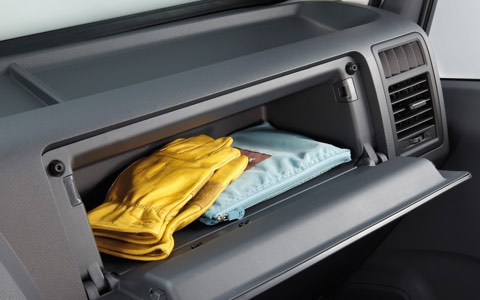

Glove Box
At 7.6 liters, this generously sized compartment keeps your travel essentials within easy reach. (This does not apply when dual airbag is selected.)

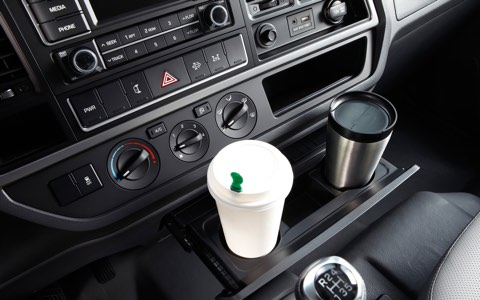

Cup Holders
With these cleverly designed cup holders, quenching your thirst while driving has never been easier.
Seat Back Console
The center seat backrest folds down to offer a tray which doubles as a writing surface.

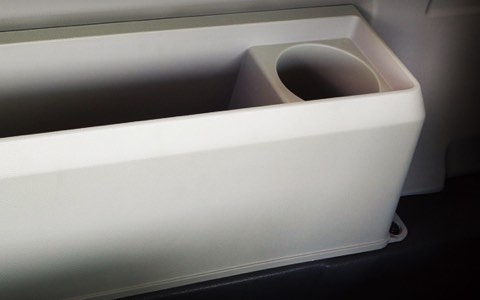

Rear Panel Console
Mounted on the rear panel, this 4.9 liter console comes with a bottle holder.

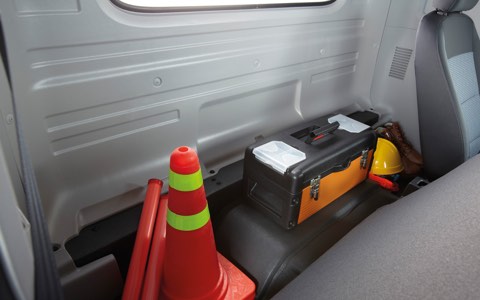

Super Cab Rear Space
Super Cab brings the advantage of extra rear space for storing tools or other essential items.

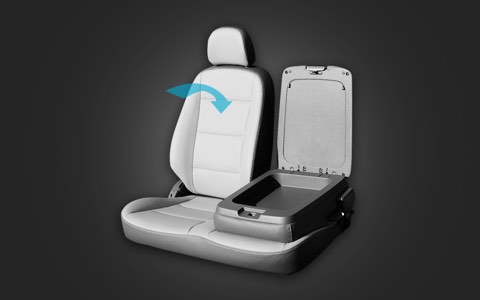

Reclining Passenger Seat and Folding Console
The Super Cab passenger seat reclines up to a maximum of 52 degrees (degress in Standard Cab).

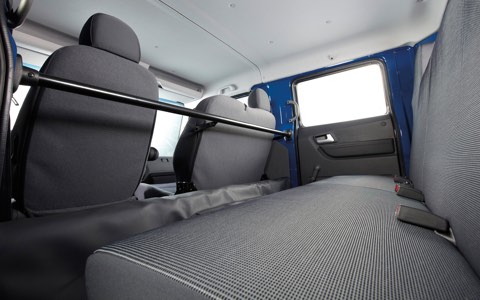

Double Cab
The rear of the Double Cab provides comfortable seating for three more of your crew.
Line up
Standard | GVW 5.5t
|
Standard
Super Double |
GVW 6.5t
|

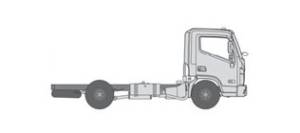

Short Wheelbase
< 2,850>
Medium Wheelbase
< 3,400~3,600>

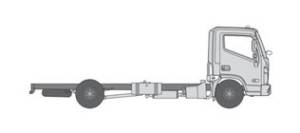

Long Wheelbase
< 3,850~3,950 >
Standard
Super | GVW 7.8t
|
